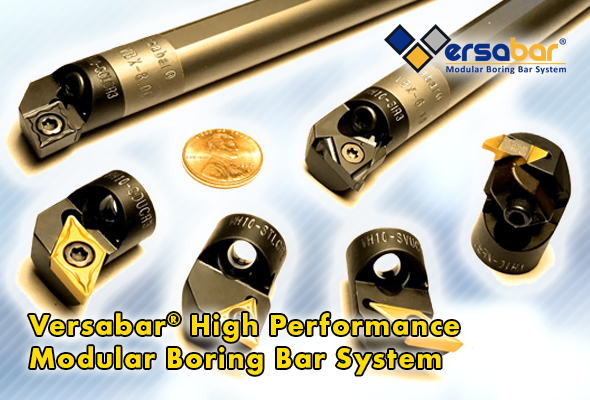

VersaBar^® - The Smart Choice

VersaBar^® combines the productivity of rigid shanks with the powerful advantage of modularity. Modular shanks are available in inch shank from .375" - 1.250" diameter and in metric shank M10-M32 diameter. Choose from a variety of lengths, coolant or non-coolant fed.

Versatility

VersaBar^® provides the ultimate in versatility because a single high performance shank can be used for multiple applications, not just one. Choose from 38 different head options, and RH and LH mount to the same shank. You'll have just what you need to tackle any challenge. Head change is fast and easy using one coupling screw. VersaBar^® heads are universal in that they mount to inch or metric shank (of similar size), making VersaBar^® ideal for manufacturer's with international locations that have CNC's utilizing both inch and metric shanks.

Faster Setups & Less Down-Time = More Run Time

VersaBar^® modular shanks streamline setups and reduce machine down-time. When the next setup requires a different insert configuration, simply change the head. In the event of a pocket crash, simply change the head. Downtime associated with a typical pocket crash is reduced by as much as 90%. Dollars generated from improved machine utilization quickly offset the investment in VersaBar^®. After that, the dollars are pure profit to the bottom line, day in and day out.

Shank Downsizing

VersaBar^® shanks (solid carbide) are 3X more rigid than steel shanks, which allows for shank downsizing. For example:

.500" steel shank can be downsized to .375" VersaBar^® shank
.625" steel shank can be downsized to .500" VersaBar^® shank
.750" steel shank can be downsized to .625" VersaBar^® shank
1.00" steel shank can be downsized to .750" VersaBar^® shank
1.25" steel shank can be downsized to 1.00" VersaBar^® shank
1.50" steel shank can be downsized to 1.25" VersaBar^® shank

The downsized shank fits inside a smaller bore, which means the shank has greater part capability. The downsized shank also provides extra room for shavings, which is big plus.

Capto^® & KM Quick-Change

VersaBar^® shanks adapt easily to machines setup with quick-change. All that is necessary is a standard boring bar holder (Capto^® or KM shank) and a split sleeve bushing. VersaBar^® 5:1 (L/D) coolant fed shanks combine excellent performance with enhanced bore depth capability. From a cost perspective, there is no comparison. VersaBar^® shanks are priced at a fraction of much higher cost 5:1 damped bars (i.e. Silent^®, Whisperline^®, Kennametal Anti-Vibration) with integral Capto^® or KM shanks. And VersaBar^® heads provide a savings of 50% or more.

Improved Pocket Life

Ever wonder why your fixed-pocket carbide bars wear out so quickly? It's not your imagination. The culprit to blame is the soft pocket. Unfortunately, this is the nature of the beast. Head hardness is removed during the brazing process (brazing involves heating the tool to about 1300º F then slow cooling). Slow cooling anneals the hardness to a lesser or greater degree. VersaBar^® heads bolt on. Their hardness is never compromised, providing years of service.

If your shop currently uses rigid fixed-pocket bars with soft pockets, consider the following:

In the last 12 months...........

1. How many pocket crashes occurred due to insert vibration?
2. How many parts were scrapped unnecessarily?
3. How many setups were nightmares due to insert shifting, causing size variation and chatter?
4. How many offset adjustments could have been avoided?
5. How many insert indexes could have been avoided?
6. How many boxes of inserts were consumed unnecessarily due to insert vibration?
7. How many replacement bars were purchased unnecessarily?
8. How many collective hours were your machines down?
9. How much profit was lost?

Why not invest a tiny percentage of that loss upgrading to VersaBar^®? You'll recover your investment fast..... and also last years loss!

Our VersaBar^® Starter Kits and Shank Retrofitting promotions make it even more affordable to go rigid and go modular. That's right. Don't scrap out your crashed carbide shanks. Let Tool$aver restore their usefulness by putting them back in service. When your old shanks are retrofitted with the proprietary VersaBar^® coupling, they perform like (and often look like) a brand new VersaBar^® shank. Shank Retrofitting provides up to 65% savings compared to new shank cost.
